Leasing of Qingdao Promising CE Marked 1.5T Articulated Loader ZL15F

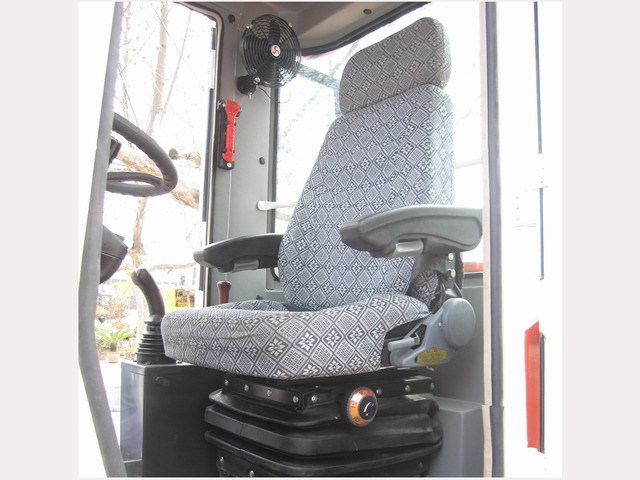

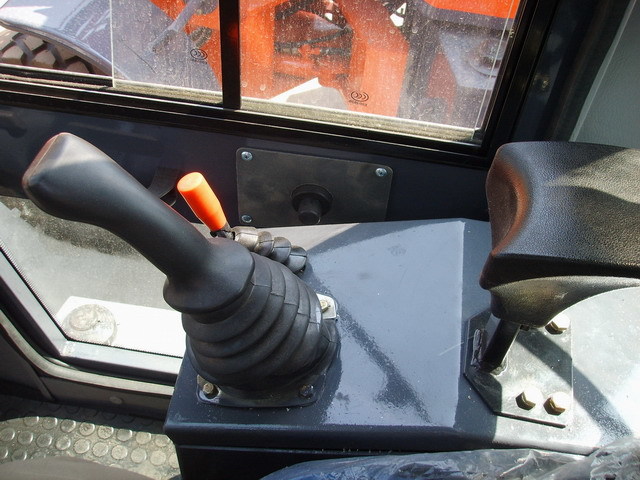

1.5 ton capacity articulated loader with heavy-duty bucket with bolt on teeth, enclosed cabin, adjustable suspension seat, digital radio & MP3 player, top beacon, and mechanical joystick control, with optional hydraulic quick hitch, optional air conditioner, reversing camera, and tilting cabin etc.

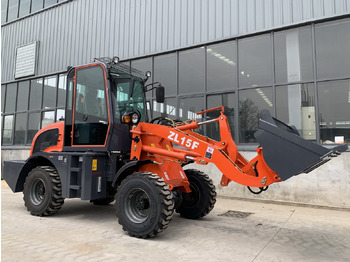

1.5T Articulated Loader ZL15F

Technical Specifications:

1. Rated Load: 1500kg

2. Operating Weight: 3500kg

3. Rated Bucket Capacity: 0.8CBM

4. Bucket Width: 1700mm

5. Max. Breakout Force: 42KN

6. Max. Dumping Height: 2700mm

7. Max. Dumping Reach: 860mm

8. Raising Time: Less than 4.5s

9. Min. Ground Clearance: 290mm

10. Overall Dimensions (L x W x H): 5100x1750x2650mm

11. Min. Turning Radius: 4400mm

12. Engine Model: XINCHAI A498BT1 (EURO III)

13. Engine Type: Four-cylinder, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine

14. Rated Engine Power: 36.8kW (50HP)

15. Rated Engine Speed: 2400rpm

16. Min. Fuel Consumption Rate: 230g/kW.h

17. Transmission Mode: YJ240 Integrated Hydraulic Torque Converter

18. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

19. Max. Speed: 25km/h

20. Mode of Axle: ISUZU Drive Axle

21. Wheel Tread: 1400mm

22. Wheel Base: 1950mm

23. Drive Mode: 4-wheel Drive

24. Hydraulic System Working Pressure: 16Mpa

25. Hydraulic System Working Pump Type: Gear Pump

26. Service Brake: Foot Pedal Single-line, Hydraulic, Expansion-shoe Brake on 4 Wheels

27. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake

28. Tyre Type Specification: 12-16.5 Pneumatic Tire

29. Front Tyre Pressure: 0.40Mpa

30. Rear Tyre Pressure: 0.35Mpa

Optional EURO5 Engine: 36.8kw YUNNEI DEF20CFF4 Engine

Optional Wider Tyres: 31x15.5-15PR

Optional Parts and Functions:

Canopy, Open Cabin, FOPS/ROPS, Tilting Cabin, Hydraulic Joystick, Air Conditioner, Color Coded Electronic Gear Shift Button on Joystick, Gear Shift Lever with Electronic Control, Reversing Camera, Quick Hitch, Extra Hydraulic Lines, LED Lights, and Float Function, etc.

Note:

1. The technical specifications are for standard models only.

2. Other optional accessories and requirements are available upon request.

3. All photos are for reference only. Machines shown may include optional parts.

4. All specifications and design characteristics are subject to change without prior notice.

5. For all available loader attachments, please refer to our Loader Attachments Catalogue.

6. Equipped with hydraulic quick coupler, your wheel loader can be easily and conveniently switched from one attachment to another to save your time and labor. Equipped with skid steer (Bobcat) quick coupler or Euro Standard quick coupler, you can use all your existing attachments with our wheel loader.
